ArraySetAsSeries

ArraySetAsSeries

此函数将 AS_SERIES 标志设置为选定的动态数组对象,元素将按时间序列的方式进行索引。

bool  ArraySetAsSeries(
   const void&  array[],    // array by reference
   bool         flag        // true denotes reverse order of indexing
   );

参数

array[]

[输入][输出] 要设置的数值数组。

flag

[输入] 数组索引方向。

返回值

成功时函数返回 true,否则返回 - false。

注意

AS_SERIES标志不能用于多维数组或静态数组(在编译阶段大小已预先确定的数组)。时间序列的索引与普通数组不同,时间序列的元素是从末尾向开头索引的(从最新到最旧的数据)。

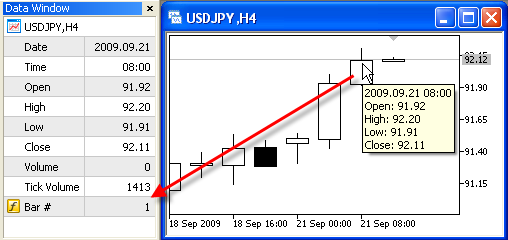

示例:显示条形图的指标

显示条形图的指标

#property indicator_chart_window
#property indicator_buffers 1
//--- indicator buffers
double         NumerationBuffer[];
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int OnInit()
  {
//--- indicator buffers mapping
   SetIndexBuffer(0,NumerationBuffer,INDICATOR_DATA);
//--- set buffer style
   SetIndexStyle(0,DRAW_LINE,STYLE_SOLID,1,CLR_NONE);
//--- set indexing for the buffer like in timeseries
   ArraySetAsSeries(NumerationBuffer,true);
//--- set accuracy of showing in DataWindow
   IndicatorSetInteger(INDICATOR_DIGITS,0);
//--- how the name of the indicator arry is displayed in DataWindow
   IndicatorShortName("Bar #");
//---
   return(INIT_SUCCEEDED);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int OnCalculate(const int rates_total,
                const int prev_calculated,
                const datetime &time[],
                const double &open[],
                const double &high[],
                const double &low[],
                const double &close[],
                const long &tick_volume[],
                const long &volume[],
                const int &spread[])
  {
//---  we'll store the time of the current zero bar opening
   static datetime currentBarTimeOpen=0;
//--- revert access to array time[] - do it like in timeseries
   ArraySetAsSeries(time,true);
//--- If time of zero bar differs from the stored one
   if(currentBarTimeOpen!=time[0])
     {
     //--- enumerate all bars from the current to the chart depth
      for(int i=rates_total-1;i>=0;i--) NumerationBuffer[i]=i;
      currentBarTimeOpen=time[0];
     }
//--- return value of prev_calculated for next call
   return(rates_total);
  }

另请参阅

访问时间序列ArrayGetAsSeries
